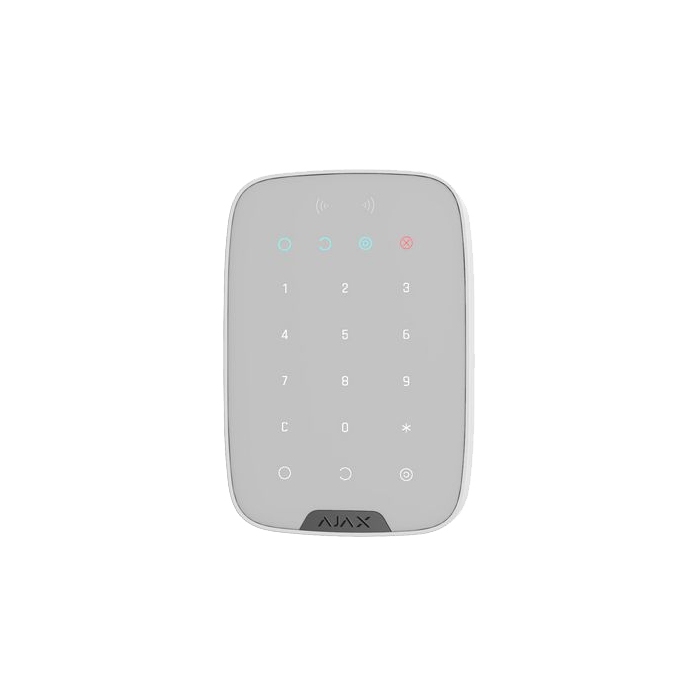

Ajax 38253.83.WH1 Wireless KeyPad Plus Arming Station & Tag Reader WHITE
The Ajax Wireless KeyPad Plus Arming Station & Tag Reader WHITE is a wireless arming keypad — Wireless keypad with encrypted Pass and Tag contactless arming plus code entry for multi-user Ajax systems.
Part of the Ajax professional wireless security range — Jeweller two-way radio with encryption, frequency hopping and anti-jamming, controlled from the Ajax mobile app and commissioned remotely with Ajax PRO. EN 50131 Grade 2 system support with optional ARC / CMS monitoring.
Key Features
- Wireless arming keypad - pairs with any Ajax hub
- Contactless Pass and Tag arming plus keypad codes
- Backlit touch surface with tamper-proof design
- Two-way Ajax Jeweller radio - encrypted, frequency-hopping and jamming-resistant
- Battery: 4 x AAA (LR03), up to 1.5 years
- Duress code and protected panic activation
- Ingress protection: IP50
- Tamper protection on the casing
Ajax Wireless KeyPad Plus Arming Station & Tag Reader WHITE — Wireless Alarm Keypad
Wireless keypad with encrypted Pass and Tag contactless arming plus code entry for multi-user Ajax systems.
Overview
The Ajax Wireless KeyPad Plus Arming Station & Tag Reader WHITE is a wireless arming keypad from the Ajax professional wireless security range - two-way Jeweller radio with encryption, frequency hopping and anti-jamming supervision, all managed from the Ajax app. Wireless keypad with encrypted Pass and Tag contactless arming plus code entry for multi-user Ajax systems.
Power: 4 x AAA (LR03) for up to 1.5 years. Two-way Ajax Jeweller radio with encryption and supervision. Enrols to any Ajax hub by QR code. Contactless Pass and Tag arming alongside keypad codes, with duress-code support.
The Ajax arming range includes touch and touchscreen keypads, the SpaceControl key fob and the Button - combine any of them on the same hub for flexible, multi-user access. Every action is logged in the app for a full audit trail.
Construction: tamper-protected enclosure with communication and battery supervision. CE / UKCA / RED / RoHS approved. Same-day dispatch from Netview CCTV Leicester — UK Ajax stockist — with trade pricing on stocked Ajax product.
Key Features
- Wireless arming keypad - pairs with any Ajax hub
- Contactless Pass and Tag arming plus keypad codes
- Backlit touch surface with tamper-proof design
- Two-way Ajax Jeweller radio - encrypted, frequency-hopping and jamming-resistant
- Battery: 4 x AAA (LR03), up to 1.5 years
- Duress code and protected panic activation
- Ingress protection: IP50
- Tamper protection on the casing
Typical Applications
- Daily arming / disarming at the entry door
- Multi-user properties needing per-person codes or tags
- Night-mode / part-set control for homes
- Lone-worker and retail panic activation
- Elderly-care assistance call buttons
- Trade installs needing same-day stock - Netview CCTV Leicester ships Ajax from UK stock
Compatible Ajax Devices
- Ajax hubs - Hub 2, Hub 2 Plus, Hub Hybrid
- Ajax app (iOS / Android) - remote arm / disarm / notifications
- Ajax PRO app and Ajax PRO Desktop for installer commissioning
What's in the Box
- 1 × Ajax KeyPad Plus Jeweller
- 1 × SmartBracket / mounting kit
- 1 × battery (pre-installed where applicable)
- 1 × quick start guide
📄 Download: Ajax KeyPad Plus Jeweller Datasheet (PDF) — full technical specification, radio, battery and mechanical detail.
Detailed Specifications — Ajax Wireless KeyPad Plus Arming Station & Tag Reader WHITE
Full technical specification for the Ajax Wireless KeyPad Plus Arming Station & Tag Reader WHITE, drawn from the official Ajax datasheet.
| Identification | |
|---|---|
| SKU | 38253 |
| MPN | 38253.83.WH1 |
| EAN | 4823114015397 |
| Brand | Ajax |
| Product Type | Wireless Alarm Keypad |
| Detection / Function | |
| Contactless Arming | Pass / Tag (DESFire) |
| Radio & Communication | |
| Radio Technology | Ajax Jeweller |
| Transmission | Two-way encrypted RF |
| Encryption | Block encryption (AES-based) |
| Open-space Range | up to 1700 m |
| Frequency Hopping | Supported |
| Anti-Jamming | Supported with notifications |
| Supervision | Automatic device polling |
| Power | |
| Power Supply | 4 x AAA (LR03) |
| Battery Life | up to 1.5 years |
| Low-Battery Reporting | Supported to the hub |
| Mechanical & Environment | |
| Tamper Protection | Yes |
| Ingress Protection | IP50 |
| Installation | SmartBracket / surface mount |
| Operating Temperature | -10 C to +40 C |
| Compatibility | |
| Ajax Hubs | Hub 2, Hub 2 Plus, Hub Hybrid |
| End-User App | Ajax app (iOS / Android / desktop) |
| Installer Tools | Ajax PRO / Ajax PRO Desktop |
| Monitoring | ARC / CMS via SIA-DC09 (Contact ID / SIA) |
| Approvals | |
| Certifications | CE, UKCA, RED, RoHS |
| Security Grade | EN 50131 Grade 2 / PD 6662:2017 compatible |
Frequently Asked Questions
What is the Ajax KeyPad Plus?
A wireless arming keypad with a contactless tag/card reader, in white, for multi-user Ajax systems.
How can users arm/disarm?
By PIN code or by presenting an encrypted Pass card or Tag fob.
Why choose KeyPad Plus over the standard KeyPad?
The contactless Pass/Tag support makes day-to-day arming faster and suits sites with many users.
How does it communicate?
Over Ajax's encrypted two-way Jeweller radio.
What do I need to use it?
An Ajax hub; managed via the Ajax app.
Do you stock it?
Yes — in stock at Netview CCTV, Leicester, with same-day dispatch for installers.
Documentation — Ajax Wireless KeyPad Plus Arming Station & Tag Reader WHITE
Download the official Ajax datasheet for the KeyPad Plus Jeweller, plus related Ajax alarm categories on netviewcctv.co.uk.
| Document | Format | Link |
|---|---|---|
| Ajax KeyPad Plus Jeweller Datasheet | Download datasheet | |
| Browse all Ajax Arming Devices | Web | View Ajax Arming Devices |
| Browse the full Ajax range | Web | View Ajax wireless alarms |
| Browse all Alarm Systems at Netview CCTV | Web | View alarm systems |
| Contact Netview CCTV (trade pricing & support) | Web | Contact our trade team |
Netview CCTV — UK Ajax stockist (Leicester). For trade pricing on Ajax product, contact our team on 0116 3800 838 or [email protected].
