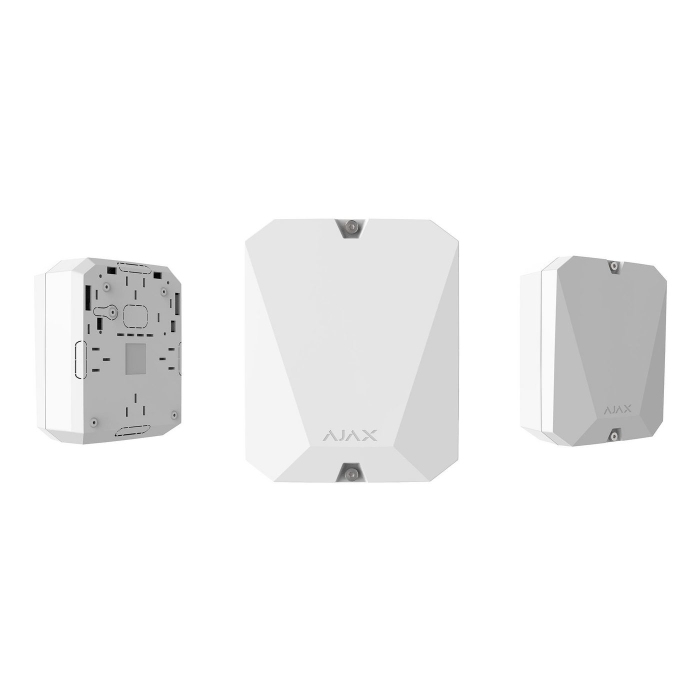

Ajax MultiTransmitter Jeweller Wireless Integration Module for 18 Third-Party Wired Detectors WHITE
The Ajax MultiTransmitter Jeweller Wireless Integration Module for 18 Third-Party Wired Detectors WHITE is a wireless expansion module — Wireless integration module that connects up to 18 third-party wired detectors to an Ajax hub.
Part of the Ajax professional wireless security range — Jeweller two-way radio with encryption, frequency hopping and anti-jamming, controlled from the Ajax mobile app and commissioned remotely with Ajax PRO. EN 50131 Grade 2 system support with optional ARC / CMS monitoring.
Key Features
- Integration module for up to 18 wired detectors
- Brings legacy or third-party wired contacts onto an Ajax hub
- Two-way Ajax Jeweller radio - encrypted, frequency-hopping and jamming-resistant
- Two power outputs for the connected wired detectors
- Per-zone status reporting in the Ajax app
- Tamper-protected enclosure
Ajax MultiTransmitterAjax MultiTransmitter Installer Guide 2026 | Netview Jeweller Wireless Integration Module for 18 Third-Party Wired Detectors WHITE — Wireless Alarm Expansion Module
Wireless integration module that connects up to 18 third-party wired detectors to an Ajax hub.
Overview
The Ajax MultiTransmitter Jeweller Wireless Integration Module for 18 Third-Party Wired Detectors WHITE is a wireless expansion module from the Ajax professional wireless security range - two-way Jeweller radio with encryption, frequency hopping and anti-jamming supervision, all managed from the Ajax app. Wireless integration module that connects up to 18 third-party wired detectors to an Ajax hub.
Connects up to 18 third-party wired detectors to an Ajax hub over encrypted Jeweller radio, with two power outputs for the connected devices and per-zone reporting in the Ajax app. Ideal for retrofits that keep existing wired contacts.
Programmed through Ajax PRO and controlled in the Ajax app. Two-way Ajax Jeweller radio with encryption, frequency hopping and supervision keeps the module reliably connected to the hub.
Construction: tamper-protected enclosure with communication and battery supervision. CE / UKCA / RED / RoHS approved. Same-day dispatch from Netview CCTV Leicester — UK Ajax stockist — with trade pricing on stocked Ajax product.
Key Features
- Integration module for up to 18 wired detectors
- Brings legacy or third-party wired contacts onto an Ajax hub
- Two-way Ajax Jeweller radio - encrypted, frequency-hopping and jamming-resistant
- Two power outputs for the connected wired detectors
- Per-zone status reporting in the Ajax app
- Tamper-protected enclosure
Typical Applications
- Retrofit installs with existing wired detectors
- Hybrid systems mixing wired and wireless
- Wired roller-shutter / shock loops
- Multi-zone outbuilding monitoring
- Trade installs needing same-day stock - Netview CCTV Leicester ships Ajax from UK stock
Compatible Ajax Devices
- Ajax hubs - Hub 2, Hub 2 Plus, Hub Hybrid
- Ajax app (iOS / Android) - remote arm / disarm / notifications
- Ajax PRO app and Ajax PRO Desktop for installer commissioning
What's in the Box
- 1 × Ajax Transmitter Jeweller
- 1 × SmartBracket / mounting kit
- 1 × battery (pre-installed where applicable)
- 1 × quick start guide
📄 Download: Ajax Transmitter Jeweller Datasheet (PDF) — full technical specification, radio, battery and mechanical detail.
Detailed Specifications — Ajax MultiTransmitter Jeweller Wireless Integration Module for 18 Third-Party Wired Detectors WHITE
Full technical specification for the Ajax MultiTransmitter Jeweller Wireless Integration Module for 18 Third-Party Wired Detectors WHITE, drawn from the official Ajax datasheet.
| Identification | |
|---|---|
| SKU | 35279 |
| MPN | 35279.62.WH1 |
| EAN | |
| Brand | Ajax |
| Product Type | Wireless Alarm Expansion Module |
| Detection / Function | |
| Detection / Function | 18 wired zones to Jeweller bridge |
| Radio & Communication | |
| Radio Technology | Ajax Jeweller |
| Transmission | Two-way encrypted RF |
| Encryption | Block encryption (AES-based) |
| Open-space Range | up to 1700 m |
| Frequency Hopping | Supported |
| Anti-Jamming | Supported with notifications |
| Supervision | Automatic device polling |
| Power | |
| Power Supply | Pre-installed battery + external supply |
| Battery Life | up to 5 years |
| Low-Battery Reporting | Supported to the hub |
| Mechanical & Environment | |
| Tamper Protection | Yes |
| Installation | SmartBracket / surface mount |
| Operating Temperature | -10 C to +40 C |
| Compatibility | |
| Ajax Hubs | Hub 2, Hub 2 Plus, Hub Hybrid |
| End-User App | Ajax app (iOS / Android / desktop) |
| Installer Tools | Ajax PRO / Ajax PRO Desktop |
| Monitoring | ARC / CMS via SIA-DC09 (Contact ID / SIA) |
| Approvals | |
| Certifications | CE, UKCA, RED, RoHS |
| Security Grade | EN 50131 Grade 2 / PD 6662:2017 compatible |
Frequently Asked Questions
What is the Ajax MultiTransmitter?
A wireless integration module, in white, that connects up to 18 third-party wired detectors to an Ajax hub.
Why use it?
It lets you bring existing wired sensors (or specialist wired devices Ajax doesn't make wirelessly) onto a modern Ajax system without rewiring them to a panel.
How does it communicate with the hub?
Over Ajax's encrypted two-way Jeweller radio.
What do I need to use it?
An Ajax hub; managed via the Ajax app.
Where is it used?
Retrofits and hybrid wired/wireless installations.
Do you stock it?
Yes — in stock at Netview CCTV, Leicester, with same-day dispatch for installers.
Documentation — Ajax MultiTransmitter Jeweller Wireless Integration Module for 18 Third-Party Wired Detectors WHITE
Download the official Ajax datasheet for the Transmitter Jeweller, plus related Ajax alarm categories on netviewcctv.co.uk.
| Document | Format | Link |
|---|---|---|
| Ajax Transmitter Jeweller Datasheet | Download datasheet | |
| Browse all Ajax Expansion Modules | Web | View Ajax Expansion Modules |
| Browse the full Ajax range | Web | View Ajax wireless alarms |
| Browse all Alarm Systems at Netview CCTV | Web | View alarm systems |
| Contact Netview CCTV (trade pricing & support) | Web | Contact our trade team |
