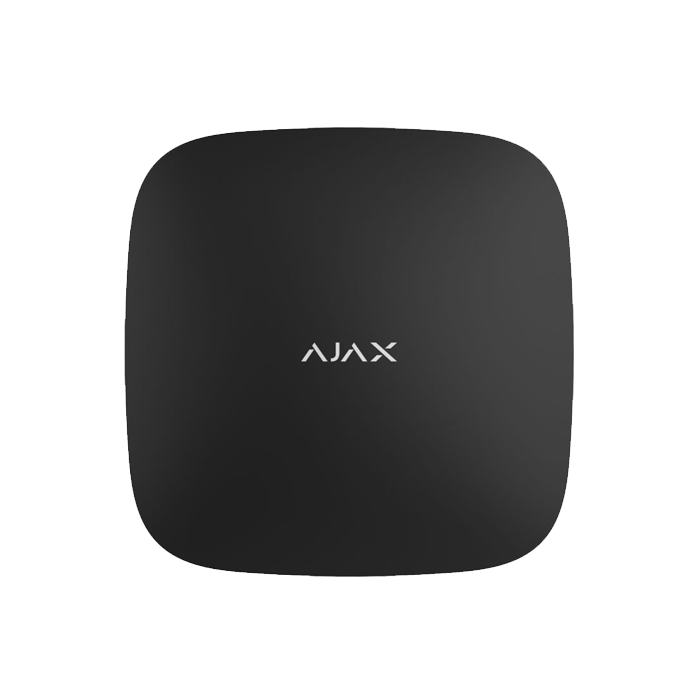

Ajax Hub2 (2G) Jeweller Wireless Control Panel, Ethernet & 2G BLACK

Overview

The Ajax Hub2 (2G) Jeweller Wireless Control Panel, Ethernet & 2G BLACK is a wireless alarm control panel (hub) from the Ajax professional wireless security range - two-way Jeweller radio with encryption, frequency hopping and anti-jamming supervision, all managed from the Ajax app. Photo-verification security control panel with Ethernet and 2G communication for homes and small commercial sites.

The Hub 2 (2G) Jeweller supports up to 100 Ajax devices, 50 users and 9 security groups, with communication over Ethernet + 2G (GSM). Channels run in parallel and switch automatically, so alarm and photo delivery to the app and the monitoring station stays reliable. A built-in backup battery gives up to 16 hours of autonomous operation.

End users control the system from the intuitive Ajax mobile and desktop apps - arming, group control, push notifications and event history. Installers commission and service the system remotely with Ajax PRO and Ajax PRO Desktop, changing settings and adding devices without a site visit. OS Malevich keeps the hub updated automatically over the air.

Construction: tamper-protected enclosure with communication and battery supervision. CE / UKCA / RED / RoHS approved. Same-day dispatch from Netview CCTV Leicester — UK Ajax stockist — with trade pricing on stocked Ajax product.

Key Features

• Controls up to 100 Ajax devices, 50 users and 9 security groups
• Communication channels: Ethernet + 2G (GSM) with automatic switching
• Photo verification of alarms via MotionCam detectors (Wings protocol)
• Two-way Ajax Jeweller radio for alarms plus Wings for photo transmission - encrypted, frequency-hopping, jamming-resistant
• Up to 2000 m Jeweller range in open space
• Ajax mobile and desktop apps for end users; Ajax PRO for installers
• Built-in backup battery - up to 16 hours of autonomous operation
• Up to 32 automation scenarios by alarm, schedule or arming
• OS Malevich with free over-the-air updates
• Certified to EN 50131 Grade 2 and PD 6662:2017
• SmartBracket mounting with tamper protection

Typical Applications

• Homes, flats and HMOs needing app-controlled wireless security
• Small commercial and retail - shops, offices, salons
• Insurance-spec sites requiring EN 50131 Grade 2 certification
• Monitored alarms reporting to an ARC / CMS
• Multi-area properties using independent security groups
• Trade installs needing same-day stock - Netview CCTV Leicester ships Ajax from UK stock

Compatible Ajax Devices

• Ajax app (iOS / Android) - remote arm / disarm / notifications
• Ajax PRO app and Ajax PRO Desktop for installer commissioning
• Full Ajax Jeweller device range - PIR / dual-tech / contacts / glass-break / fireAjax Fire Alarm vs Intruder Alarm: UK Compliance for Combined Systems / sirens
• MotionCam photo-verification detectors (Wings)
• KeyPad, KeyPad Plus, KeyPad TouchScreen and SpaceControl arming devices
• ARC / CMS monitoring via SIA-DC09 (Contact ID / SIA)

What's in the Box

• 1 × Ajax Hub 2 (2G) Jeweller control panel
• 1 × SmartBracket mounting panel
• 1 × power cable
• 1 × Ethernet cable
• 1 × installation kit
• 1 × quick start guide
