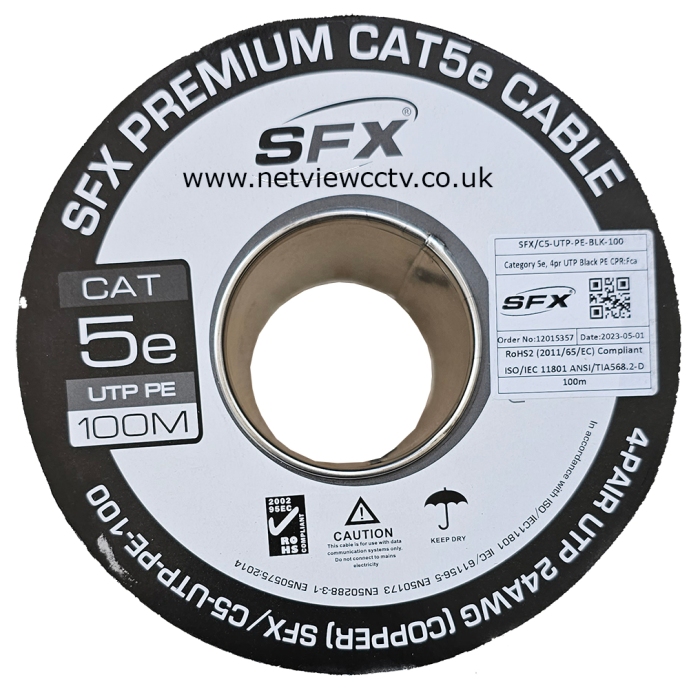

SFX 100m Cat5e Premium UTP Cable Solid Copper PE External Grade Black
Secure-Flex SFX/C5-UTP-PE-BLK-100 Cat5e Cable
100m SFX Cat5e Premium UTP External PE Solid Copper BLACK
Solid copper Cat 5e U/UTP External Grade PE jacket for use in outdoors applications. Cat 5e U/UTP PE cable is designed and tested to achieve Gigabit Ethernet (1000 Base-T). CAT5E-PE is technically identical to standard CAT5E, except that the jacket is polyethylene (“PE”) instead of PVC. This is a more robust, abrasion resistant material, and provides a tougher jacket for more difficult installations or demanding environments. It is also suitable for exterior locations.
Key Features
- 4 x 24 AWG twisted pairs
- Full Solid Copper
- Polyetheleyne (PE) jacket for external use.
- 100m Roll
- Highly flexlibe cable
- Metre marking on the cable
- Delta EC verified
- HDBASE-T approved
- Supports Gigabit Ethernet
- Excellent performance exceeding ANSI/TIA Cat5e specifications
U/UTP : Unscreened overall, unscreened twisted pairs (often also called UTP)
Netview CCTV are an official wholesaler and supplier of SFX cables with direct access to great deals on the whole range of SFX communication cables. You can buy SFX cables online at netviewcctv.co.uk or collect from our warehouse in Leicester.
SFX cables product range includes
- Coax cables for TV, CCTV and satellite
- Category data cables
- FireAjax Fire Alarm vs Intruder Alarm: UK Compliance for Combined Systems alarm cable
- Intruder alarm cable
- Belden equivalent cables
- Audio cables
- Multi-core and screened cables
- Telephone cables
- Power cables
| Conductor | Bare Copper |
|---|---|
| Conductor Diameter (mm) | 0.47 ±0.01, 0.47 ±0.02 |
| Insulation | HDPE |
| Insulation Thickness (mm) | 0.18 |
| Insulation Colour | Blue/White/Blue;Orange/White/Orange;Green/White/Green;Brown/White/Brown |
| Insulation Thickness 2 (mm) | 0.88 ±0.08 |
| Nylon Rip-Cord | White 210D |
| Jacket | PE (UV resistant) |
| Jacket Colour | Black RAL 9005 |
| Jacket Thickness (mm) | 0.49 ±0.03 |
| Overall Diameter (mm) | 4.80 ±0.03 |
| Overall Sheath | PE |
| Overall Colour | Black |
| Standards | ISO/IEC 11801, ANSI/TIA 568-C.2, CE2014/30/EU, LVD 2014/35/EU,RoHS2 2011/65/EU |
| CPR | Fca |
| Application | External Data and CCTV transmission up to 100Mb/s |
| EAN | 5056631502104 |
| AWG | 24 |
| Impedance (1-100MHz) | 100O ±15O |
| Drain Wire | N |
| Weight | 2.8 |
| Flame Propagation Standard | Fca |
| Clear Polyester Tape | >=115% |
