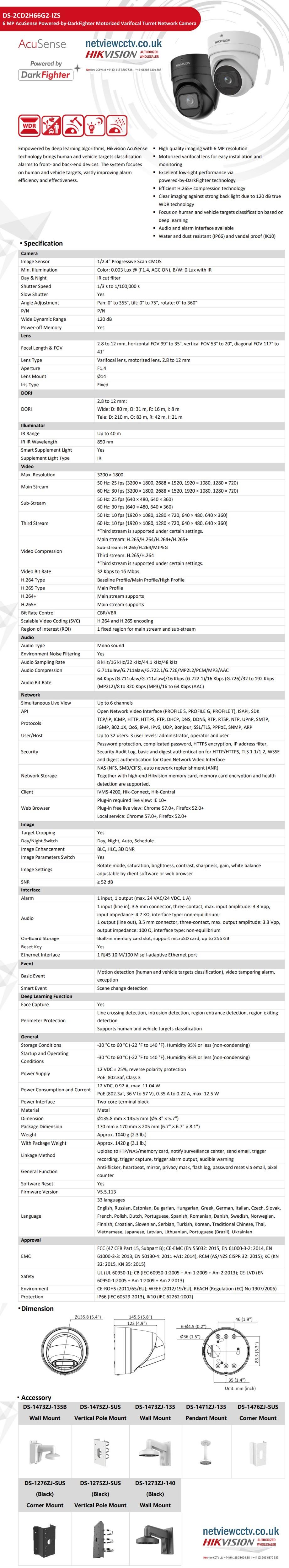

6MP DS-2CD2H66G2-IZS(2.8-12MM)(C) Motorized Lens IP Turret Camera WHITE

Camera

• Image Sensor 1/2.4" Progressive Scan CMOS
• Max. Resolution 3200 × 1800
• Min. Illumination Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
• Shutter Time 1/3 s to 1/100,000 s
• Day & Night IR cut filter
• Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

• Lens Type Varifocal lens, motorized lens, 2.8 to 12 mm
• Focal Length & FOV 2.8 to 12 mm, horizontal FOV 99° to 35°, vertical FOV 53° to 20°, diagonal FOV 117° to 41°
• Lens Moun tØ14
• Iris Type Fixed
• Aperture F1.4

DORI

• DORI

  2.8 to 12 mm:

  Wide: D: 80 m, O: 31 m, R: 16 m, I: 8 m

  Tele: D: 210 m, O: 83 m, R: 42 m, I: 21 m

Illuminator

• Supplement Light Type IR
• Supplement Light Range Up to 40 m
• Smart Supplement Light Yes
• IR Wavelength 850 nm

Video

• Main Stream

  50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (640 × 480, 640 × 360)

  60 Hz: 30 fps (640 × 480, 640 × 360)

• Third Stream

  50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  *Third stream is supported under certain settings.

• Video Compression

  Main stream: H.265/H.264/H.264+/H.265+

  Sub-stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264

  *Third stream is supported under certain settings.

• Video Bit Rate 32 Kbps to 16 Mbps
• H.264 Type Baseline Profile/Main Profile/High Profile
• H.265 Type Main Profile
• Bit Rate Control CBR/VBR
• Scalable Video Coding (SVC) H.264 and H.265 encoding
• Region Of Interest (ROI) 1 fixed region for main stream and sub-stream
• Target CroppingYes

Audio

• Audio Type Mono sound
• Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
• Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering Yes

Network

• Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
• Simultaneous Live View Up to 6 channels
• API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
• User/Host Up to 32 users. 3 user levels: administrator, operator and user
• Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network Storage

  NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

  Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• Client iVMS-4200, Hik-Connect, Hik-Central
• Web Browser

  Plug-in required live view: IE 10+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+


• Image Parameters Switch Yes
• Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night Switch Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR)120 dB
• SNR≥ 52 dB
• Image Enhancement BLC, HLC, 3D DNR

Interface

• Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage Built-in memory card slot, support microSD card, up to 256 GB
• Audio

  1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;

  1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

• Alarm1 input, 1 output (max. 24 VAC/24 VDC, 1 A)
• Reset KeyYes

Event

• Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception
• Smart Event

  Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle))

  Scene change detection

• LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning

Deep Learning Function

• Face Capture Yes

General

• Power

  12 VDC, 0.92 A, max. 11.04 W, two-core terminal block, reverse polarity protection

  PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W

• Dimension Ø135.8 mm × 145.5 mm (Ø5.3" × 5.7")
• Package Dimension 170 mm × 170 mm × 205 mm (6.7" × 6.7" × 8.1")
• Approx. 1040 g (2.3 lb.)
• With Package WeightApprox. 1420 g (3.1 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language

  33 languages

  English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• General FunctionAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

Approval

• EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)
• SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
• EnvironmentCE-ROHS (2011/65/EU); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
• ProtectionIP66 (IEC 60529-2013), IK10 (IEC 62262:2002)
