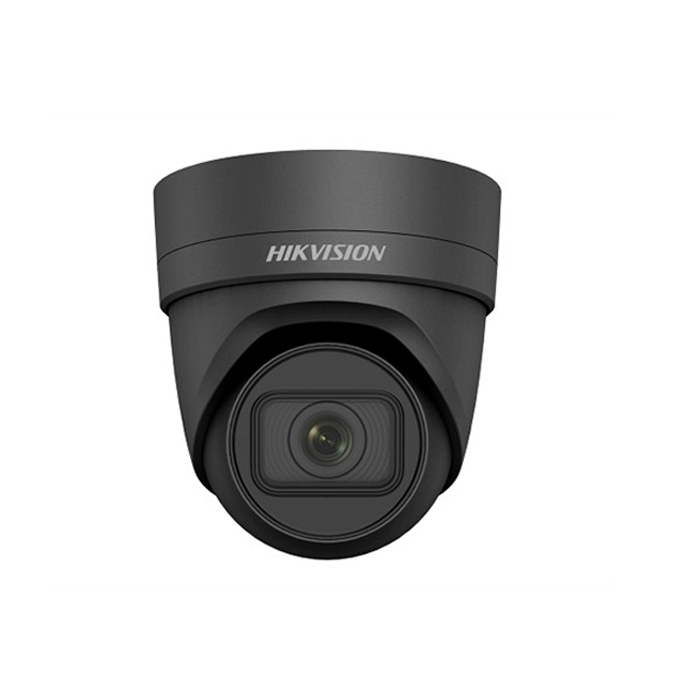

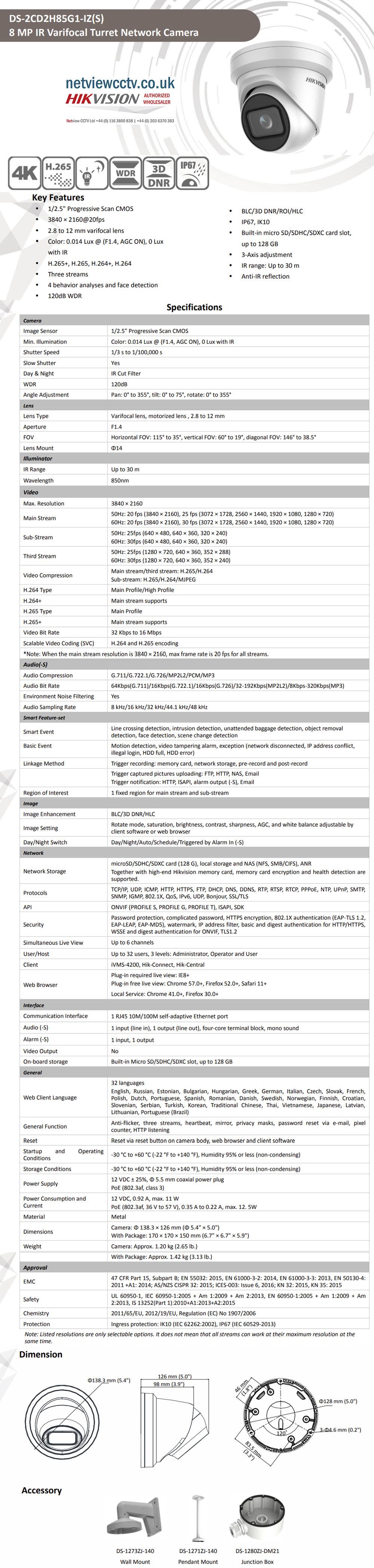

8MP DS-2CD2H85G1-IZS 2.8~12mm Motorized Lens IP Turret Camera BLACK

Camera

• Image Sensor 1/2.5" Progressive Scan CMOS
• Min. Illumination Color: 0.014 Lux @ (F1.4, AGC ON), 0 Lux with IR
• Shutter Speed 1/3 s to 1/100,000 s
• Slow Shutter Yes
• Wide Dynamic Range 120 dB
• Day & Night IR Cut Filter
• Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens

• Lens Type 2.8 to 12 mm
• FOV Horizontal FOV: 115° to 35°, vertical FOV: 60° to 19°, diagonal FOV: 146° to 38.5°
• Aperture F1.4
• Lens Mount Φ14

Illuminator

• IR Range Up to 30 m
• Wavelength 850 nm

Video

• Max. Resolution 840 × 2160
• Main Stream

  50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)

  60Hz: 20 fps (3840 × 2160), 30 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)



• Sub Stream

  50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

  60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)



• Third Stream

  50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)

  60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)



• Video Compression

  Main stream/third stream: H.265/H.264

  Sub-stream: H.265/H.264/MJPEG



• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Scalable Video Coding (SVC)H.264 and H.265 encoding support
• Region Of Interest (ROI)1 fixed region for main stream and sub-stream

Audio

• Environment Noise FilteringYes
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3
• Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)

Network

• Simultaneous Live ViewUp to 6 channels
• APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
• ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• User/HostUp to 32 users, 3 levels: administrator, operator and user
• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
• Network Storage

  microSD/SDHC/SDXC card (128 G), local storage and NAS (NFS, SMB/CIFS), ANR

  Together with high-end Hikvision memory card, memory card encryption and health detection are supported.



• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web BrowserPlug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+


• Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In (-S)
• Image EnhancementBLC, HLC, 3D DNR
• Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Interface

• Audio1 input (line in), 1 output (line out), four-core terminal block, mono sound
• Alarm1 input, 1 output
• On-Board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB
• Hardware ResetReset via reset button on camera body, web browser and client software
• Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

Event

• Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart EventLine crossing detection, intrusion detection, unattended baggage detection, object removal detection, face detection, scene change detection

General

• Linkage MethodUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture
• Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• General FunctionAnti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
• Power Supply

  12 VDC ± 25%, Φ 5.5 mm coaxial power plug

  PoE (802.3af, class 3)



• Power Consumption And Current

  12 VDC, 0.92 A, max. 11 W

  PoE (802.3af, 36 V to 57 V), 0.35 A to 0.22 A, max. 12. 5W





• Camera Dimension

  Camera: Φ 138.3 × 126 mm (Φ 5.4" × 5.0\")

  With Package: 170 × 170 × 150 mm (6.7 × 6.7\" × 5.9\")



• Camera Weight

  Camera: Approx. 1.20 kg (2.65 lb.)

  With Package: Approx. 1.42 kg (3.13 lb.)



• Approval
• EMC47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015
• SafetyUL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015
• Environment2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
• ProtectionIngress protection: IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
