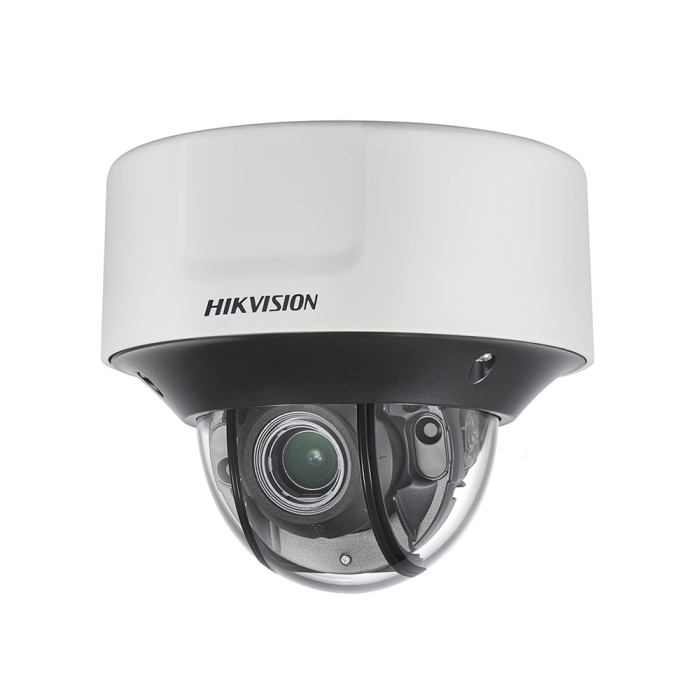

4MP iDS-2CD7546G0-IZHS DeepinView Motorized Lens Face Capture IP Camera

Camera

• Image Sensor 1/1.8" Progressive Scan CMOS
• Max. Resolution 2560 × 1440
• Min. Illumination Color: 0.0005 Lux @ (F1.2, AGC ON); B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time 1 s to 1/100,000 s
• Day & Night

  IR cut filter

  Blue glass module to reduce ghost phenomenon

• Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens

• Focal Length & FOV

  2.8 to 12 mm, horizontal FOV: 114.5° to 41.8°, vertical FOV: 59.3° to 23.6°, diagonal FOV: 141.1° to 48°

  8 to 32 mm, horizontal FOV: 42.5° to 15.1°, vertical FOV: 23.3° to 8.64°, diagonal FOV: 49.6° to 17.3°

• FocusAuto, semi-auto, manual
• Iris TypeP-iris
• Aperture

  2.8 to 12 mm: F1.2 to F2.5

  8 to 32 mm: F1.7 to F1.73

DORI

• DORI

  Wide:

  2.8 to 12 mm: D: 60 m, O: 23.8 m, R: 12 m, I: 6 m

  8 to 32 mm: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15 m

  Tele:

  2.8 to 12 mm: D: 149 m, O: 59.1 m, R: 29.8 m, I: 14.9 m

  8 to 32 mm: D: 400 m, O: 158.7 m, R: 80 m, I: 40 m

Illuminator

• Smart Supplement Ligh tYes
• Supplement Light Type IR
• IR Wavelength 850 nm
• Supplement Light Range

  2.8 to 12 mm: 30 m

  8 to 32 mm: 50 m

Video

• Main Stream

  50 Hz: 50 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

  60 Hz: 60 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (704 × 480, 640 × 480)

  60 Hz: 30 fps (704 × 480, 640 × 480)

• Third Stream

  50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

  60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

• Fourth Stream

  50 Hz: 25 fps (704 × 480, 640 × 480)

  60 Hz: 30 fps (704 × 480, 640 × 480)

• Fifth Stream

  50 Hz: 25 fps (704 × 480, 640 × 480)

  60 Hz: 30 fps (704 × 480, 640 × 480)

• Video CompressionH.265+/H.265/H.264+/H.264/MJPEG
• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeBaseline Profile/Main Profile/High Profile
• Bit Rate ControlCBR/VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)4 fixed regions for main stream, sub-stream, third stream, fourth stream and fifth stream
• Target CroppingYes

Audio

• Environment Noise FilteringYes
• Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC) /8 to 320 Kbps (MP3)
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/AAC/MP3
• Audio TypeMono sound
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz

Network

• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• ClientiVMS-4200, Hik-Connect
• Network Storage

  NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

  Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• Web Browser

  Plug-in required live view: IE9+, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11

  Plug-in free live view: Chrome 45.0+, Firefox 52.0+

  Not recommended: Safari 11+, Edge

• Simultaneous Live ViewUp to 20 channels
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2


• Image Parameters SwitchYes
• Image SettingsSaturation, brightness, contrast, sharpness, white balance, and AGC adjustable by client software or web browser
• Day/Night SwitchDay, Night, Auto, Schedule, Alarm Trigger
• Wide Dynamic Range (WDR)140 dB
• Image EnhancementBLC, HLC, Defog, 3D DNR
• SNR≥ 52 dB
• Privacy Mask8 programmable polygon privacy masks, mask color or mosaic configurable
• Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
• Image StabilizationEIS

Interface

• Video Output1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
• Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
• Audio1 input (line in), 1 output (line out), 3.5 mm connector,2 built-in microphones
• Alarm1 input, 1 output (max. 24 VDC, 1 A)
• RS-485With -Y: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• Reset KeyYes
• Power Output12 VDC, max. 100 mA

Event

• Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal reboot, HDD full, HDD error), video quality diagnosis, vibration detection
• Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, audio exception detection, scene change detection, defocus detection
• LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture

Deep Learning Function

• Multi-Target-Type Detection

  Supports simultaneous detection and capture of human body, face and vehicle

  Gets 7 face features, 13 human body features and 2 vehicle features

• Face Capture

  1. Detects up to 60 faces simultaneously

  2. Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°

  3. Uploads face with background and closed-up face pictures

• Face Comparison

  Up to 10 face libraries. Up to 30,000 faces for each library. 150,000 faces in total.

  Supports face library encryption

• Perimeter Protection

  Line crossing, intrusion, region entrance, region exiting

  Support alarm triggering by specified target types (human and vehicle)

General

• Power

  With –Y:

  12 VDC ± 20%, 1.23 A, max. 14.7 W, three-core terminal block;

  24 VAC ± 20%, 0.91 A, max. 13.7 W, three-core terminal block;

  PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.27 A to 0.36A, max. 15.0 W

  Without –Y:

  12 VDC ± 20%, 1.23 A, max. 14.7 W, two-core terminal block;

  24 VAC ± 20%, 0.91 A, max. 13.7 W, two-core terminal block;

  PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.27 A to 0.36A, max. 15.0 W

• DimensionØ162 × 141.8 mm (Ø6.4" × 5.6")
• Package Dimension251 × 215 × 189 mm (9.9" × 8.5" × 7.4")

• Without -Y: approx. 1490 g (3.28 lb.)

  With -Y: approx. 1565 g (3.45 lb.)

• With Package Weight

  Without -Y: approx. 2435 g (5.37 lb.)

  With -Y: approx. 2295 g (5.06 lb.)

• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General FunctionHeartbeat, mirror, password protection, watermark, privacy mask, IP address filter, one-key reset, five streams
• HeaterYes

Approval

• EMC

  FCC (47 CFR Part 15, Subpart B);

  CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);

  RCM (AS/NZS CISPR 32: 2015);

  IC (ICES-003: Issue 7);

  KC (KN 32: 2015, KN 35: 2015)

• Safety

  UL (UL 62368-1);

  CB (IEC 62368-1:2014+A11);

  CE-LVD (EN 62368-1:2014/A11:2017);

  BIS (IS 13252(Part 1):2010/IEC 60950-1 : 2005);

  LOA (IEC/EN 60950-1)

• Environment

  CE-RoHS (2011/65/EU);

  WEEE (2012/19/EU);

  Reach (Regulation (EC) No 1907/2006)

• ProtectionIK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
• Anti-Corrosion ProtectionWith -Y: NEMA 4X (NEMA 250-2018)
• Automotive And RailwayEN50121-4
• OtherPVC FREE
