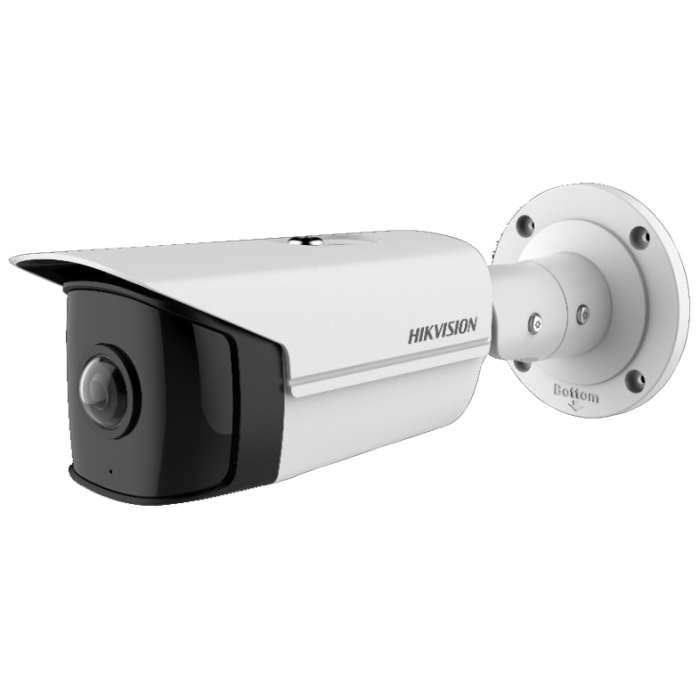

4MP Hikvision DS-2CD2T45G0P-I 1.68mm 180° Ultra-Wide Angle IP Bullet Camera

Camera

• Image Sensor1/2.7" Progressive Scan CMOS
• Min. Illumination0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
• Shutter Speed1/3 s to 1/100,000 s
• Slow ShutterYes
• Wide Dynamic Range120dB
• Day & NightICR Cut
• Linkage MethodUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture. Trigger recording: memory card, network storage, pre-record and post-record. Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email. Trigger notification: HTTP, ISAPI, alarm output, Email
• Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

• FocusFixed
• Lens Type & FOV1.68mm @ F2.0, horizontal FOV 180°, vertical FOV 101°, diagonal FOV 180°
• ApertureF2.0
• Lens MountM12

DORI

• DORIDetect: 3.6 m, observe: 1.4 m, recognize: 0.8 m, identify: 0.4 m

Illuminator

• IR Range20 m
• Wavelength850nm
• Smart Supplement LightYes

Video

• Max. Resolution2688 × 1520
• Main Stream50Hz: 25fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 x 720) 60Hz: 24fps (2688 × 1520), 30fps (2304 × 1296, 1920 × 1080, 1280 x 720)
• Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240); 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Video CompressionMain stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264 /MJPEG
• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeMain Profile/High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR/VBR
• Stream TypeMain stream, Sub-stream
• Scalable Video Coding (SVC)H.264, H.265
• Region Of Interest (ROI)1 fixed region for main stream and sub-stream

Network

• Simultaneous Live ViewUp to 6 channels
• APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• User/HostUp to 32 users 3 levels: Administrator, Operator and User
• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
• Network Storagemicro SD/SDHC /SDXC (256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web BrowserPlug-in free live view: Chrome45.0+, Firefox52.0+ Local service: Chrome41.0+, Firefox30.0+


• Day/Night SwitchDay, Night, Atuo, Schedule
• Image EnhancementBLC;HLC;EIS;Lens Distortion;3D DNR
• Image SettingsSaturation;brightness;contrast;sharpness;rotate mode;white balance;AGC
• SNR≥ 50 dB
• Privacy Mask4 regions of privacy mask

Interface

• On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
• Hardware ResetYes
• Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

Smart Feature-Set

• Smart EventLine crossing detection, intrusion detecction, unattended baggage detextion, object removal detection, face detection, scene change detection

General

• Web Client Language32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• General Functionprivacy mask;heart;mirror;flash log;password reset via e-mail;pixel counter
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Power Supply12 VDC ± 25%; PoE: 802.3af, Class 3
• Power Consumption And Current12 VDC, 0.6 A, max. 7.2W PoE: (802.3af, 36 V-57 V), 0.3 A to 0.2 A, max. 8.7W
• Power InterfaceΦ5.5 mm coaxial power plug
• MaterialMetal
• Camera DimensionCamera: Φ105 × 278 mm (Φ4.1″ × 10.9″)
• Package Dimension386 × 156 × 155 mm (15.20″ × 6.14″ × 6.10″)
• Camera Weight570 g (1.26 lb.)
• With Package Weight760 g (1.68 lb.)

Approval

• ClassClass B
• ProtectionIP67
• EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
• EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
