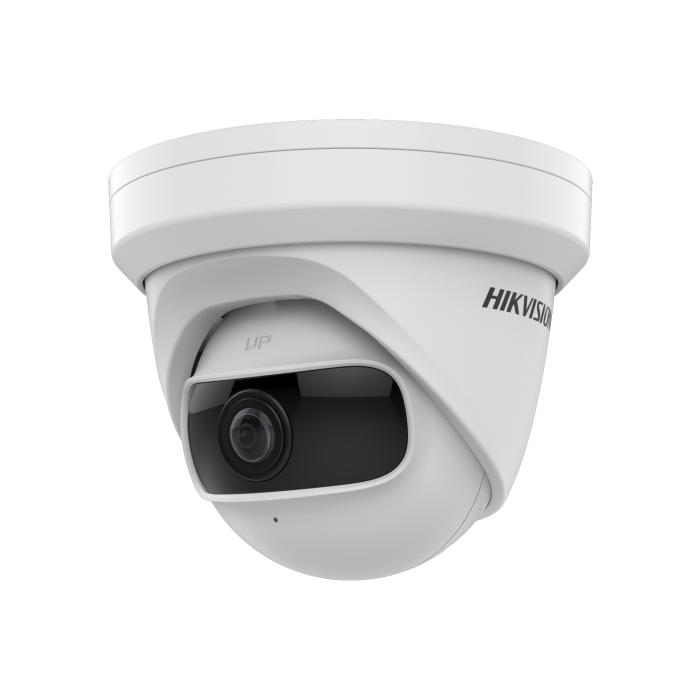

4MP Hikvision DS-2CD2345G0P-I 1.68mm 180° Ultra-Wide Angle Indoor IP Turret Camera - EOL

Camera

• Image Sensor1/2.7" Progressive Scan CMOS
• Min. IlluminationColor: 0.028 Lux @ (F2.0, AGC ON) B&W: 0.0028 Lux @ (F2.0, AGC ON), 0 Lux with IR
• Shutter Speed1/3 s to 1/100,000 s
• Slow ShutterYes
• Day &NightIR Cut Filter
• Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
• WDR120 dB

Lens

• LensFixed lens, 1.68 mm
• ApertureF2.0
• FOV1.68 mm, horizontal FOV: 180° , vertical FOV: 101° , diagonal FOV: 180°
• Lens MountM12

Illuminator

• IR RangeUp to 10 m
• Wavelength850 nm

Video

• Max. Resolution2688 × 1520
• Main Stream50Hz: 25fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 24fps (2688 × 1520), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
• Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Video CompressionMain stream: H.265+/H.264+/H.265/H.264 Sub-stream: H.265/H.264/MJPEG
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Video Bit Rate32 Kbps to 16 Mbps
• Scalable Video Coding (SVC)H.264 and H.265 encoding support

Smart Feature-Set

• Region Of Interest1 fixed region for main stream, sub-stream and third stream


• Image EnhancementBLC, HLC, 3D DNR
• Image SettingSaturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
• Day/Night SwitchDay/Night/Auto/Schedule

Network

• Network StoragemicroSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR
• APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK
• Simultaneous Live ViewUp to 6 channels
• User/HostUp to 32 users, 3 levels: administrator, operator and user

Interface

• Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
• On-Board StorageBuilt-in micro SD slot, up to 256 GB

General

• ResetReset via reset button on camera body, web browser and client software
• Startup And Operating Conditions-10 °C to 40 °C (14 °F to 104 °F), humidity 95% or less (non-condensing)
• Storage Conditions -10 °C to 40 °C (14 °F to 104 °F), humidity 95% or less (non-condensing)
• Power Supply12 VDC ± 25%, Φ 5.5 mm coaxial power plug; reverse polarity protection; PoE (802.3af, type 1, class 3)
• Power Consumption And Current12 VDC, 0.48 A, max. 5.8 W; PoE (802.3af, 36 V to 57 V), 0.19 A to 0.12 A, max. 6.8W
• MaterialMetal & Plastic
• DimensionsCamera: Φ 127.3 × 104.1 mm (Φ 5" × 4.1") With package: 150 × 150 × 141 mm (5.9" × 5.9" × 5.6")
• WeightCamera: Approx. 520 g (1.1 lb.) With package: Approx. 700 g (1.5 lb.)

Approval

• EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
• ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
