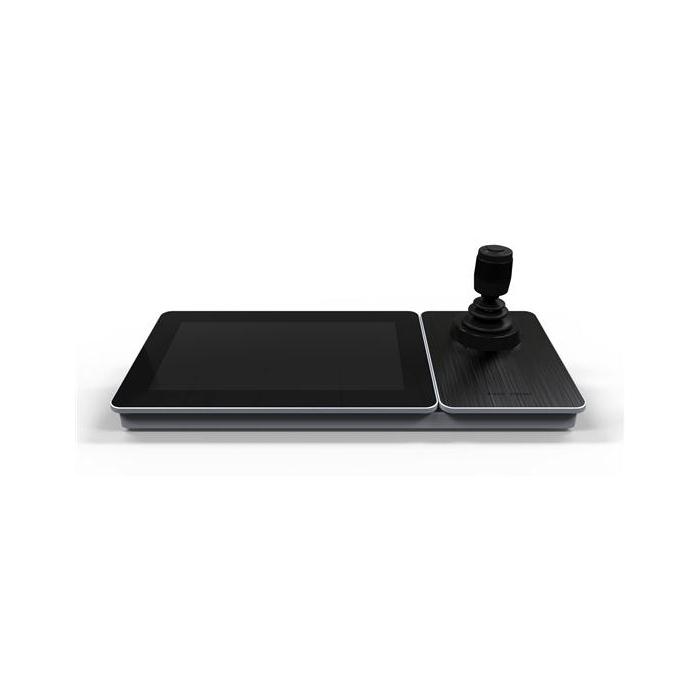

Hikvision DS-1600KI IP PTZ Network Keyboard 10" Touchscreen
In stock
SKU
DS-1600KI(B)
MPN: 302600232EAN: 6954273684310UPC: 6954273684310
Hikvision DS-1600KI Network PTZ Keyboard with colour 10" TouchScreen
- 10.1" capacitive touchscreen
- Detachable design of the touchscreen and joystick
- Wired and WiFi network connection
- POE power supply
- Capable of decodingWhat is Decoding Capability 2-ch at 1080P decodingWhat is Decoding Capability; up to 16-division window display
- Live view on touch panel
- DVI and HDMI output to monitor
- Controllable of 2000 devices
- Access to Hikvision products including DVR, DVS, NVR, network camera, speed dome, etc.
- Control of MVC and decoders for video decodingWhat is Decoding Capability and output on video wall
- PTZ control, setting and calling preset, patrol and pattern
- Support upgrade and configuration files import/export by USB flash disk
- Support recording and picture capturing; saving files in USB flash disk or uploading to FTP server
- Two-level user authority and up to 16 user accounts are configurable: one admin and 15 operators
MPN: 302600232EAN: 6954273684310UPC: 6954273684310
| System | ||
|---|---|---|
| Operating System: | Android 4.4 | |
| TFT LCD Screen: | 10.1" TFT LCD touchscreen Resolution: 1024 × 600 |
|
| Joystick: | 4-axis joystick | |
| Local Decoding: | Local live view at 1080P/720P/HD1/BCIF/CIF/QCIF resolution, and up to 16-division window display | |
| External Interfaces | ||
|---|---|---|
| Two-way Audio Input: | 1-ch, 3.5mm connector (2.0Vp-p, >1kΩ) |
|
| Audio Output: | 1-ch, 3.5mm connector (2.0 Vp-p, 600 Ω) | |
| Network Interface: | 10M/100M/1000M Adaptive Ethernet port | |
| WiFi: | Supported | |
| USB Interface: | USB 2.0 × 2 | |
| Video Interface: | HDMI, DVI | |
| General | ||
|---|---|---|
| Power Supply: | 12V DC /POE | |
| Consumption: | ≤15W | |
| Working temperature: | -10°C --＋55°C | |
| Working humidity: | 10％--90％ | |
| Dimensions (W × D × H): | 404 × 180 × 163 mm | |
| Weight: | 1.7 Kg | |
