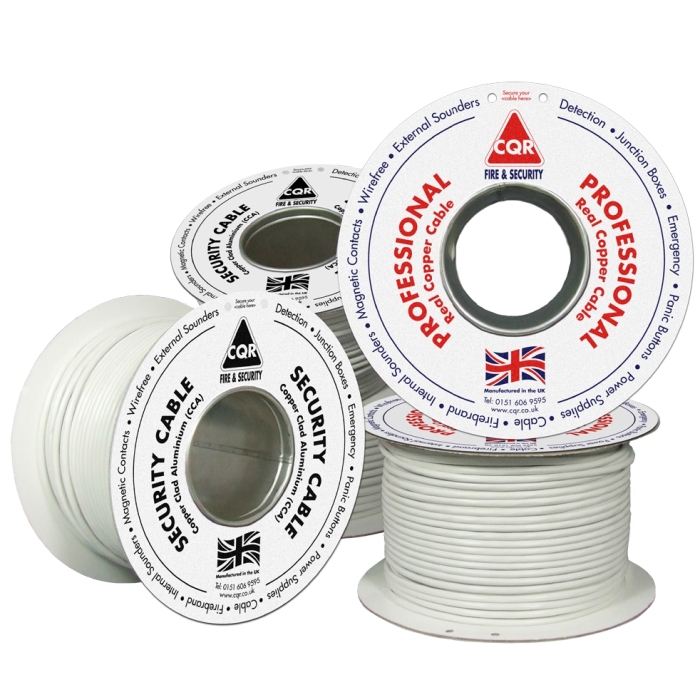

CQR 100m Pro Intruder Alarm Cable 8-Core Screened WHITE
CAB8/WH/100/PR 100m CQR 8-core Intruder Alarm Cable WHITE
Professional
This UK manufactured cable has cores of 7 strands of 0.182mm annealed tinned copper wire and is sheathed in Type 1 PVC. Suitable for any installation where signal integrity is paramount. Professional Screened cable has an aluminum foil wrapped round the cores. Screened cable offers significant advantages in situations where RF interference or spurious signals may lead to false alarms or erosion of data. An screen wire is also present along the entire length of the cable.
- Core Type: Annealed tinned copper
- Strand Diameter: 0.182mm
- Strands per Core: 7
- Nominal Conductor Area: 0.182mm2
- Core Gauge: 23 SWG
- Insulation Thickness: 0.3mm
- Max Operating Voltage: 50v RMS
- Current Rating: per core @ 70oC: 1 Amp
- Max Operating Temp: 70 Degree Celsius
- Nom Core Resistance @ 20oC: 94.6 Ω/KM
The majority of the cost of an intruder alarm system is in the installation rather than the equipment so it is vital that the highest quality cable is used to ensure system integrity. All CQR’s security cable is manufactured in the UK and is renowned for its superior quality. Short lead times can be met as well as producing small runs of unusual variants.
