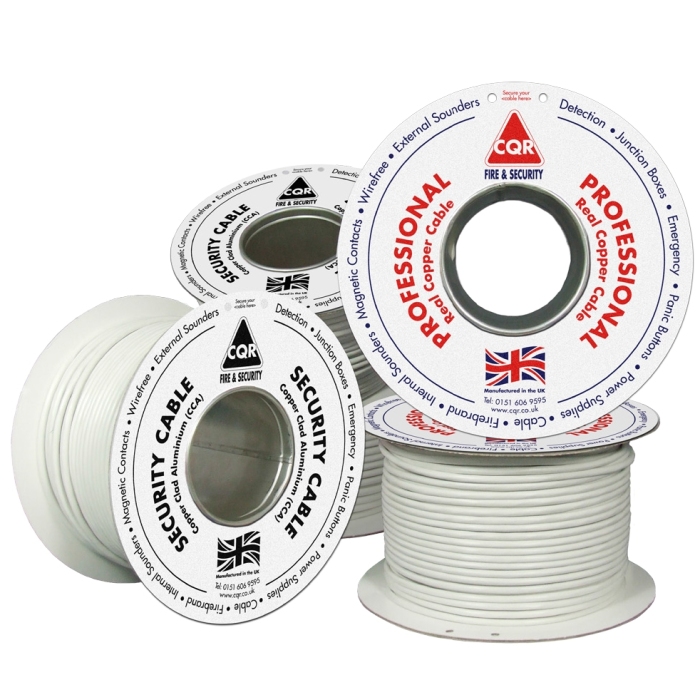

CQR 100m Intruder Alarm Cable CCA 8-Core WHITE
£34.54
£28.78
In stock
SKU
CQR-CABCCA8/WH/100M
CABCCA8/WH/100M CQR 8-Core Intruder Alarm Cable WHITE
CQR Alarm Cable has been designed, tested and manufactured in the UK for domestic applications and is suitable for shorter runs. This cable is based on cores made from 7 strands of 0.2mm Copper Clad Aluminium Magnesium (CCAM) and is sheathed in Type 1 PVC.
- Core: 7 x 0.2
- Resistance: 147.9 Ohms/Km
- Conductor Material: Tinned stranded 15% CCAM
- Conductor Area: 0.22mm?
- Current Rating: 1 Amp
- Max Voltage: 50V
- Core Insulation: PVC TI.1
- Sheathing: PVC Type 6
- Operating Temp: 70 Degree Celsius
- 8 Core Cable - White - Screened
- 100m Reel
- Aluminum / pet foil Screening
- Soft tinned copper Drain Wire
The majority of the cost of an intruder alarm system is in the installation rather than the equipment so it is vital that the highest quality cable is used to ensure system integrity. All CQR’s security cable is manufactured in the UK and is renowned for its superior quality. Short lead times can be met as well as producing small runs of unusual variants.
Application
Suitable for domestic applications and shorter runs.
Construction
7×0.2mm2 Copper Clad Aluminium sheathed in a choice of standard PVC or Low Smoke & Fume(LSF). CCA cable can be screened or unscreened.
Available in 2, 4, 6, 8, or 12 core with a white or brown sheath.
Coloured rip cord for identification of BS4767-3.30:2015 type.
Approvals
All CQR cables are certified and tested to EN50575:2014 – CPR 305/2011.
CCA cable conforms to BS4737-3.30:2015 and is Type 3.
